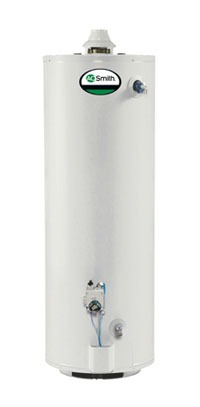

A.O. Smith ProMax High Efficiency Gas WH

A.O. Smith ProMax High Efficiency

Gas Water Heater

Features

The ProMax® family offers a wide range of water heating solutions — from models that help you qualify for gas utility rebates to high recovery models ideal for large families with high demand for hot water. All ProMax water heaters are engineered to help lower your energy bills and provide exceptional reliability. They go the extra mile in safety innovation with C3 Technology™ that protects against accidental ignition of flammable vapors. Our ProMax SL “side loop” models are designed to handle both water heating and space heating in your home.

  • Qualifies for most gas utility rebate programs, Energy Star Home Program recommendations and California Title 24 requirements.
  • Features FVIR that protects against accidental ignition of flammable vapors.
  • Environmentally-Friendly Green Choice® gas burner reduces NOx emissions by 33% compared to standard burners.
  • Piezo igniter for easy “no match” pilot ignition.

Tech Specs

Specifications

High Recovery: Yes

Emissions:

Standard

Gallon Capacity:

30 - 50

First Hour Delivery:

67 - 88

Recovery Rise @ 90°F (Gallons):

36 - 41

Energy Factor: 0.62

Vent Connection:

3 or 4

Tank Warranty:

6 or 10 Year

Parts Warranty:

6 Year

Input BTU/HR Natural Gas:

35500 - 40000

Water Connection Location:

Top

Carton Dimensions:
23.6x20.8x51.1 -
27x27.8x61.5

Vent Material:

 B-Vent

Water Connections:

3/4

Dimensions

Weight (Lbs):

123 - 165

Diameter (Inches):

18 - 22

Height Including Draft Hood (Inches): 51 1/2 - 61 3/4

Height to the top of the Heater (Inches):

47 3/4 - 58 1/4
