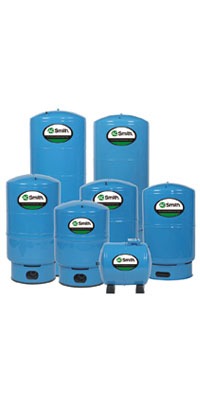

A.O. Smith Pump Tanks
Tanks/Accessories
Features
- Multiple head construction adds structural strength and more capacity within the same diameters.
- Interior epoxy coating is permanently bonded to the tank shell for ultimate protection on the water side of the tank.
- Durable butyl diaphragm ensures long life.
- Positive lock retention system controls compression in the diaphragm connection, eliminating air loss or water leaks in tank.
- Electrostatically applied powder-coated exterior for maximum sunlight (UV) resistance with zinc phosphate undercoat for highest corrosion resistance.
- Corrosion-resistant metal air valve.
- Welded steel base 5-year limited warranty.
Tech Specs |
Specifications |
PSI Working Pressure: |
100 |
Gallon Capacity: |
12 - 900 |
Dimension |
Height (Inches): |
12 1/2 - 159 |
Diameter (Inches): |
8 3/8 - 42 |
Approximate Shipping Weight (Lbs): |
4.5 - 1040 | |
|
