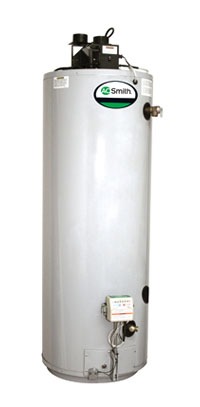

A.O. Smith ProMax Side Loop Power Direct Vent
Gas Water Heater
Features
Our ProMax® specialty vent gas water heaters can be installed almost anywhere in your home because they can vent up to 40 feet. Our direct-vent models feature two-pipe combustion systems that draw clean air from outside the home, eliminating any worries about indoor ventilation.
- Vents up to 45 equivalent feet with installer friendly plastic material.
- Advanced Intelli-Vent™ gas control valve with rugged silicon nitride hot surface igniter.
- Closed-combustion, two-pipe system draws clean combustion air from outside, vents outside the home.
- FVIR Compliant.
Tech Specs |
| Specifications |
|
Gallon Capacity: |
40 - 75 |
| First Hour Delivery: |
70 - 130 |
|
Recovery Rise @ 90°F (Gallons): |
41 - 72 |
| Energy Factor: |
0.60 - 0.58 |
|
Input BTU/HR Natural Gas: |
40,000 or 70,000 |
| Dimensions |
|
Height (Inches): |
57 - 71 1/2 |
|
Weight (Lbs): |
224 - 352 |
| Diameter (Inches): |
21 - 26 1/4 | |
|
