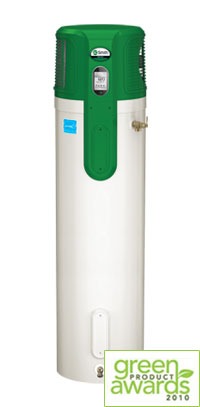

A.O. Smith Voltex Hybrid Electric Heat Pump

Hybrid Water Heater

Features

Absorbs environmental heat and transfers it to the water, at the same time cooling and dehumidifying the ambient air
With an 80-gallon tank, more energy is created through the heat pump technology, resulting in larger savings
Four operation modes: high efficiency, hybrid, electric and vacation
User-friendly LCD display for easy interaction
Conserves energy thanks to 2.4 Energy Factor (EF)
Eligible for Federal Tax Credit
ENERGY STAR® qualified
Available in 60 and 80-gallon models

How does Voltex work?

The Voltex® Hybrid Electric Heat Pump Water Heater is an integrated system that utilizes heat pump technology to provide a more efficient way to heat water with electricity. The Voltex pulls heat from the surrounding air and deposits the heat into the tank. The end result is very efficient production of hot water, with cooler and dehumidified air as a welcome by-product.

Tech Specs
Specifications
Gallon Capacity:	60 - 80
ENERGY STAR Qualified:	Yes
First Hour Delivery (Gallons):	51/68/66 or 70/84/76
Standard Voltage:	240
Standard Input:	2.0/4.5
Electronic Display:	Yes
Insulation Thickness:	2
Warranty (Tank):	10 Year
Warranty (Parts):	10 Year
No. of Elements:	2
Est. Annual Cost:	$201.00
Dimension
Diameter (Inches):	24 1/2
Height (Inches):	67 1/3 - 80 1/2
Weight (Lbs):	322 - 410
